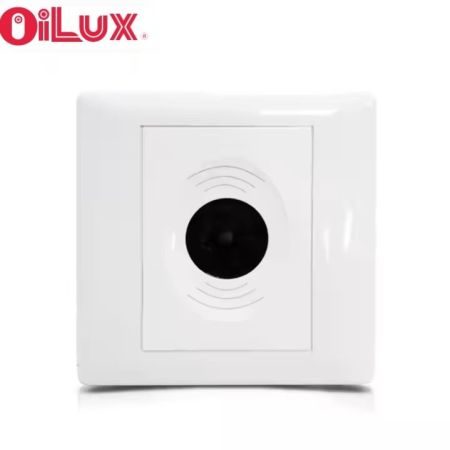

Wall Mounted Sensor Switch

Buildon TECHNICAL LIGHTING

QAR 40

Product Details

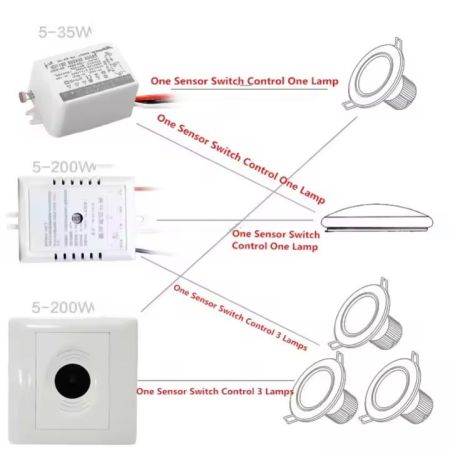

**Microwave Motion Sensor Switch Features** This Microwave Sensor Switch is compatible with energy-saving lamps, incandescent lamps, fluorescent lamps, and LED lamps. The motion sensor can detect movement through materials such as glass, plastic, and wood; sensitivity can be adjusted during installation to meet your needs. It is designed for indoor use and can be mounted on ceilings or walls, making installation easy. The switch can retrofit 2-3 standard lamps to function as sensor lighting. It is suitable for use in hallways, corridors, stairwells, and similar locations. The sensor is more responsive to motion that moves across its front than to motion directed toward it.

Usage : Indoor/Outdoor

If ordering more than 20 Units, please submit a request for a quote (RFQ).

WEIGHT & DIMENTIONS

Length(cm) :
6
Width(cm) :
3
Thickness(cm) :
3
Weight(kg) :
0.1

Material

Input Characteristics
Model No. ILXSS200
Mains voltage 185-265V
Stand-by power <0.5W
Load Rating 200W
Sensor Data
Sensor principle HF Microwave
Operation Frequency 5.8GHz
Transmission power <0.2mW
Detection range:  Max(diameter*H) 8m*6m
Detection angle
360° Downward, 160° Forward
Hold time 5-600s(adjustable by built-in dip switch)
Environment
Operation Temperature(Ta) -20~40°c
IP Rating IP31
Lux Control
5/10/50Lux/disabled
(adjustable by built-in dip switch)

Recessed Hole Size
Diameter 70--80mm
Size
88*88*60mm
Sensor Distance
6m max (installation 3m height)


GENERAL SPECIFICATION

35W Smart Microwave Motion Sensor Light Switch with Built in microwave motion sensor and daylight sensor


WARRANTY AND CARE

3 YEARS
